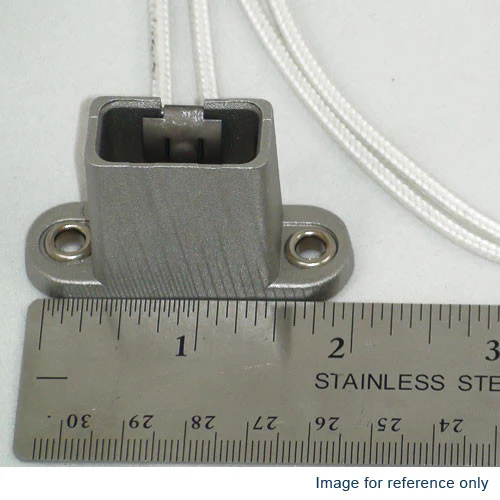

OSRAM 69006 TP-22XL - G9.5 lamp holder - Ceramic Steatite Socket

OSRAM 69006 TP22 XL Lampholder for bulbs with G9.5, 2-Pin Medium Base.
OSRAM socket products are of the highest quality in order to provide a safe and reliable connection that maximizes the life and performance of the lamp and socket system.

Product features and benefits:
- Ceramic housings designed specifically for high temperature halogen and metal halide applications
- High quality contact materials for optimal mechanical and electrical properties
- UL recognized and CE certified
- Body Material: Ceramic Steatite Body / Die Cast Aluminum Housing
- Wire: 36 inch, 16 AWG
- Maximum Wattage: 1000W, Maximum Voltage: 250V

Areas of application:
- Halogen Fixtures
- Metal Halide Fixtures
- Halogen Instrumentation
- Halogen Equipment

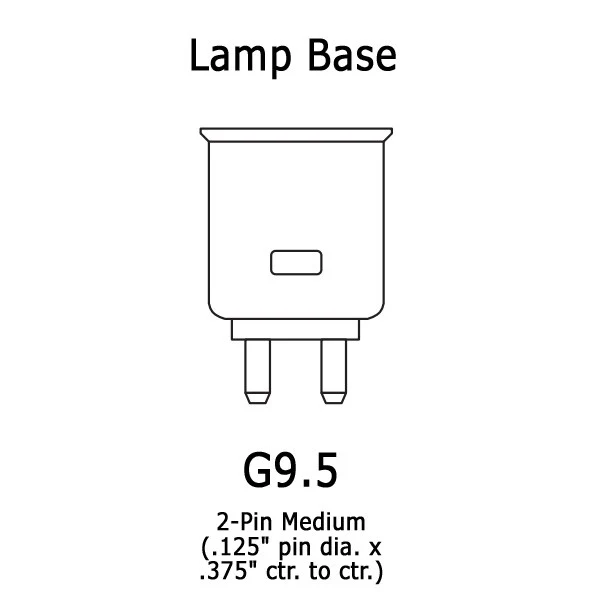

This lamp holder is for bulbs with G9.5 base, like:
- EHC/EHB, GLC 575/115/300, EHD, GLD 750/115/300, EHF, GLE 750/115/1500, EHG, 1000/240V/G9.5, FEL, 1000Q/T6/RTP/C, FEP/240- 1000Q/T6/RTPFS, FLK, - FLK PLUS HPR 575/115, FLK/X 115V, - GLA 575/115/2000, - FRN 2000T7Q
- Strip Length (in): 0.38- Qualifications: UL Recognized-E31557, CSA Certified - LR20904- Wire Leads: Any UL recognized and CSA certified wire: AWG 18,16 or 14, 600 V min, 392F

Manufacturer	OSRAM
Part Number	69006
UPC	046135690068
EAN	4008321388735
Application	Socket
Base	G9.5 2-Pin
Color	White
Contact Material	Silver Plated Brass
Operation Temperature (F)	392
Type	TP-22
Voltage (V)	250
Wire Guage/Type	AWG16 SF2
Length (in)	36.00

Manual:

OSRAM 69006 TP22XL 36IN/16GA/ULSF2
